Name: Digital Stereo Microscope
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Brand Name : CNOEC, OPTO-EDU

Model Number : A32.3602-STL2

Certification : CE,

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Head : Binocular & Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm

Eyepiece : WF10x/20mm

Zoom Lens : 0.7~4.5x

Zoom Ratio : '1:6.5

Magnification : 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives

Working Distance : 100mm, With Auxiliary Objectives 30~165mm

Contact Now

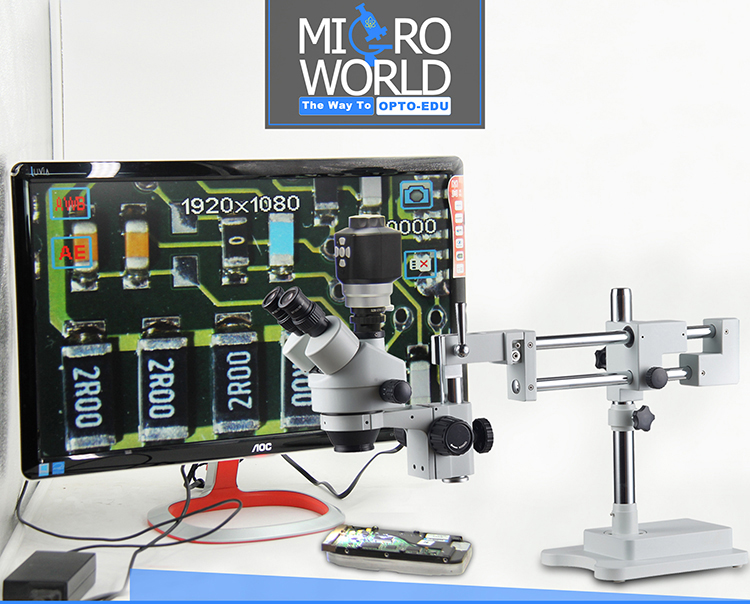

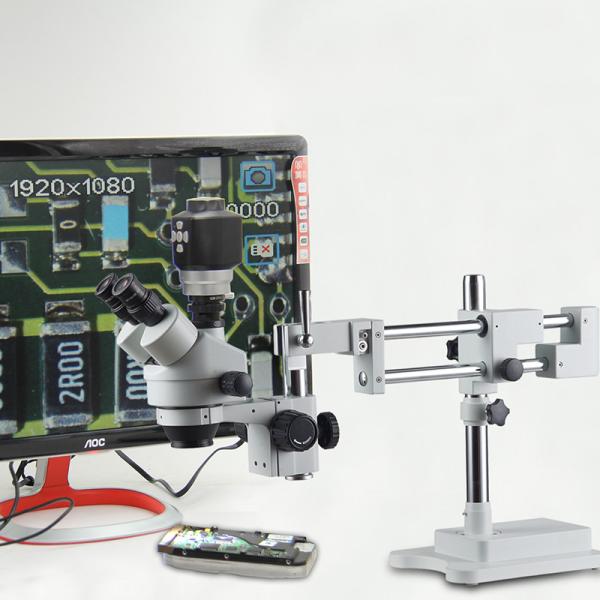

Digital Stereo Microscope

A23.3645-STL2 Zoom Stereo Microscope Specification		B	T
Head	Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm	O
	Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter		O
Eyepiece	WF10x/20mm
Zoom Lens	0.7~4.5x
Zoom Ratio	1:6.5
Magnification	7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives
Working Distance	100mm, With Auxiliary Objectives 30~165mm
Field Of View	1~95.2mm
Stand	Dual Arm Boom Stand, No Light Source
Optional Accessories		Cata.No.
Head	Binocular Head + WF10x/20mm	A53.3645-B
	Trinocular Head + WF10x/20mm	A53.3645-T

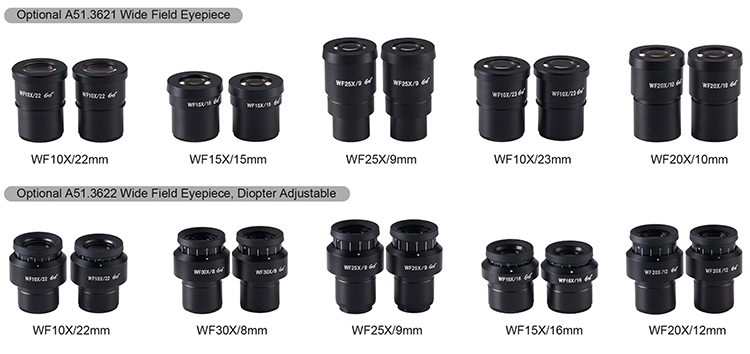

Eyepiece	WF10x/20mm, High-eyepoint	A51.3621-1020
	WF10x/22mm, High-eyepoint	A51.3621-1022
	WF10x/23mm, High-eyepoint	A51.3621-1023
	WF15x/15mm, High-eyepoint	A51.3621-1515
	WF20x/10mm, High-eyepoint	A51.3621-2010
	WF25x/9mm, High-eyepoint	A51.3621-2509
	WF30x/8mm, High-eyepoint	A51.3621-3008
	WF10x/22mm, High-eyepoint, Diopter Adjustable	A51.3622-1022
	WF15x/16mm, High-eyepoint, Diopter Adjustable	A51.3622-1515
	WF20x/12mm, High-eyepoint, Diopter Adjustable	A51.3622-2010
	WF25x/9mm, High-eyepoint, Diopter Adjustable	A51.3622-2509
	WF30x/8mm, High-eyepoint, Diopter Adjustable	A51.3622-3008

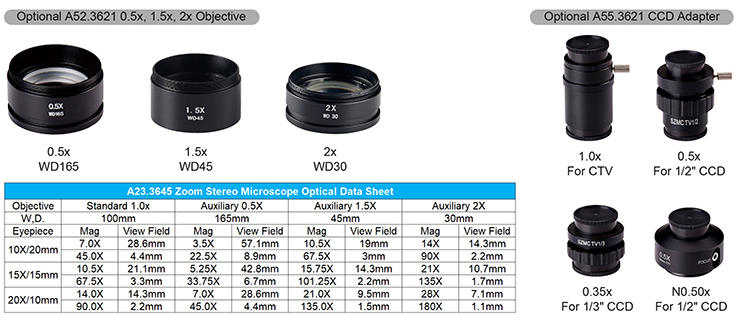

Auxiliary Lens	0.5X,W.D. 165mm	A52.3621-0.5x
	1.5X,W.D. 45mm	A52.3621-1.5x
	2.0X,W.D. 30mm	A52.3621-2.0x
CCD Adapter	1.0x, For CTV	A55.3621-1.0x
	0.50x, For 1/2" CCD	A55.3621-0.5x
	0.35x, For 1/3" CCD	A55.3621-0.35x
	0.50x, For 1/2" CCD	A55.3621-N0.5x
