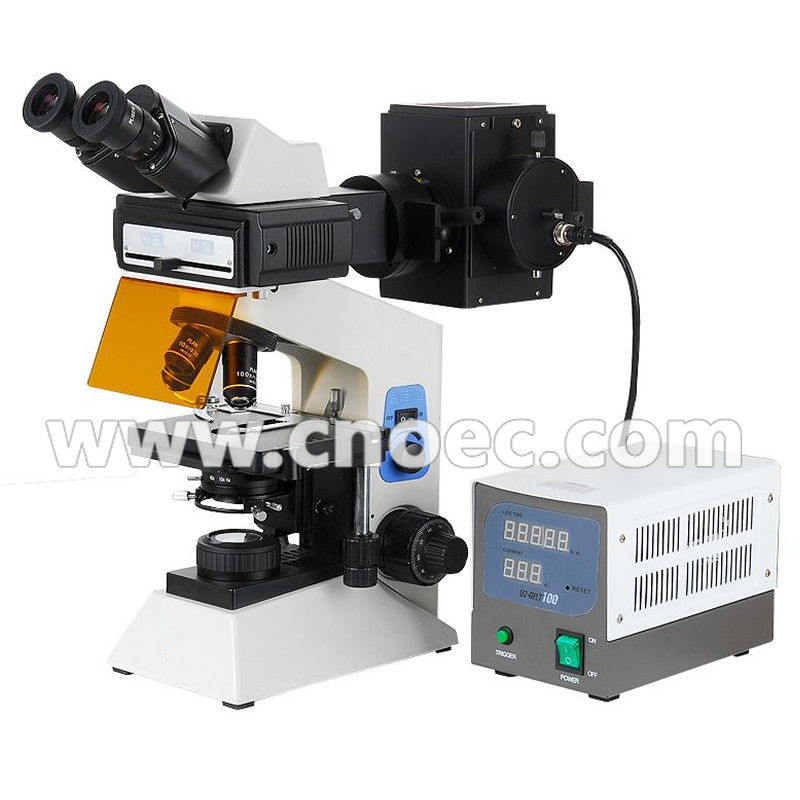

| A16.0906 Fluorescent Microscope | A | B |
| Head | Binocular, 30° Inclined, 360° Rotatable, Interpupillary Range 54~75mm, Diopter Adjustable +/-5° | o |
| Trinocular, 30° Inclined, 360° Rotatable, Interpupillary Range 54~75mm , Diopter Adjustable +/-5° | o |
| Eyepiece | PL10x/18mm, Wide Field, High Eyepoint |
| Objective | Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40xs/0.65, 100xs/1.25 Oil |
| Nosepiece | Reversed Quadruple |
| Focusing | Coaxial Coarse & Fine Focusing, Low Position Design, Coarse Focusing Range 28mm, Fine Focusing Precision 0.002mm, With Tension Adjustment and Up Limit |
| Working Stage | Double Layer Mechanical Stage, 150*140mm, Moving Range 76*50mm, Precision 0.1mm, Double Slide Holer, Low Position Coaxial Regulating Handles |
| Condenser | Abbe N.A.1.25 Condenser, With Iris Diaphragm, With Filter Holder, With Dark Field & Phase Contrast Socket |
| Fluorescent Attachment | Reflection Flurescent Koehler Illmination,
Mercury Lamp Housing
Power Control Box For Mercury Lamp, Wide Voltage 90~245V AC
Eye Protecting Board
100W DC Mercury Bulb, Centered to Objective |
| Fluorescent Filter | B, CHROMA |
| G,CHROMA |
| Filter | Blue, Dia. 45mm |
| Light Source | Kohlerl Illumination, 6V20W Halogen Lamp, Center Pre-adjusted |
| Power | 90~240V Wide Range Voltage |
| A12.0906 Biological Microscope Optional Accessories |
| Eyepiece | PL10x/20mm, Wide Field, High Eyepoint | A51.0903-1020 |
| PL10x/18mm, Wide Field, High Eyepoint, With Pointer | A51.0905-1018R |
| PL10x/18mm, Wide Field, High Eyepoint, With Reseau | A51.0905-1018G |
| WF15x/13mm | A51.0902-1513 |
| WF20x/10mm | A51.0902-2010 |
| Objective | Infinity Plan Semi-APO Fluorescent 4x/0.10, W.D.15.3mm | A5F.0931-4 |
| Infinity Plan Semi-APO Fluorescent 10x/0.30, W.D.8.7mm | A5F.0931-10 |
| Infinity Plan Semi-APO Fluorescent 20x/0.50, W.D.2.5mm | A5F.0931-20 |
| Infinity Plan Semi-APO Fluorescent 40x/0.75, W.D.0.72mm | A5F.0931-40 |
| Infinity Plan Semi-APO Fluorescent 100x/1.3, W.D.0.21mm | A5F.0931-100 |
| Nosepiece | Reversed Quintuple Nosepiece | A54.0930-BS5 |
| Filter | Yellow, Dia. 45mm | A56.0935-XSY |
| Green, Dia. 45mm | A56.0935-XSG |
| Netural, Dia. 45mm | A56.0935-XSF |
| Adapter | C-Mount 1.0x, Focus Adjustable | A55.0925-10 |
| C-Mount 0.5x , Focus Adjustable, For 1/2" CCD | A55.0925-05 |
| C-Mount 0.35x, Focus Adjustable , For 1/3" CCD | A55.0925-35 |
| Photo Adapter, With PK or MD Mount, With 3.2x Photo Eyepiece | A55.0901-2 |
| Light Source | Kohler Illumination, 3W LED, Center Pre-adjusted | A56.0904-LEDK |
| Dark Field | Dark Field Slide, For 4x~10x Objective | A5D.0915-1 |
| Dark Field Slide, For 20x~40x Objective | A5D.0915-2 |
| Polarizing | Polarizer | A5P.0912-P |
| Analyzer | A5P.0912-A |
| Infinity PlanPhase Contrast | Centering Telescope Eyepiece, Dia. 23.2mm | A5C.0910-232 |
| Phase Contrast Slide, For 10x, 40x Infinity Objective | A5C.0915-IP1 |
| Phase Contrast Slide, For 20x, 100x Infinity Objective | A5C.0915-IP2 |
| Infinity Plan Phase Contrast Objective 10x/0.25 | A5C.0935-10 |
| Infinity Plan Phase Contrast Objective 20x/0.50 | A5C.0935-20 |
| Infinity Plan Phase Contrast Objective 40x/0.65 | A5C.0935-40 |
| Infinity Plan Phase Contrast Objective 100x/1.25 | A5C.0935-100 |
| Fluorescent Filter | UV, CHROMA | A5F.0922-UV |
| V, CHROMA | A5F.0922-V |
