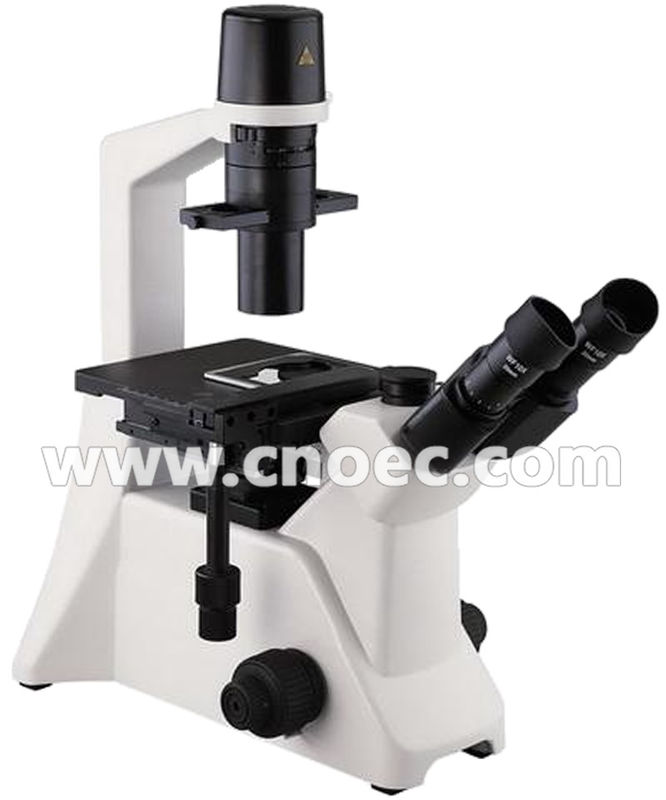

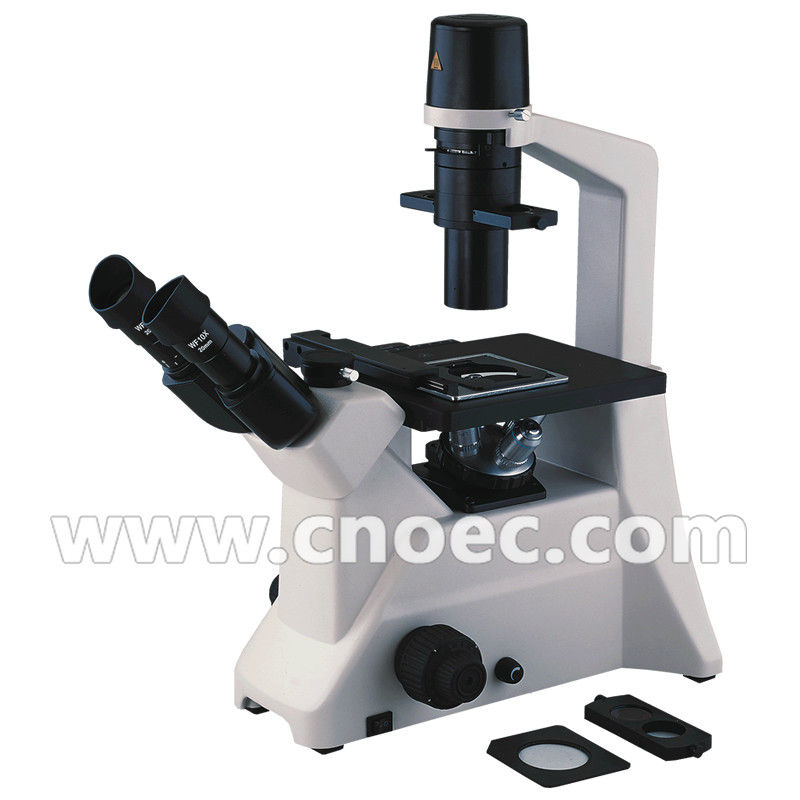

A14.2602 Inverted Microscope Specification |
Head | Seidentopf Trinocular Head,45° Inclined, Interpupilary
Distance 50-75mm, Light Distribution
(binocular tube:photo tube): Both 100:0 and 20:80 |
Eyepiece | WF10x/20mm |
Telescope |
Long Working Distance Objective | Plan Objective LPL10x/0.25 WD=7.9mm |
Plan Objective LPL25x/0.40 WD=5.0mm |
Plan Objective LPL40x/0.65 WD=3.0mm |
Plan Phase Contrast Objective LPL Ph+ 25x/0.40 WD=5.0mm |
Focus System | Low positioned, coaxial coarse & fine focusing system,
coarse 42mm/rot, fine 0.2mm/rot, minimum reading 2μm |
Nosepiece | Quadruple |
Stage | Mechnical Stage 206(X) x 170(Y)mm, with attached
mechanical stage moving range 128(X) x 80(Y)mm |
Culture Dish Holder | 65mm |
35mm |
Condenser | Slide Relief Phase Contrast Condenser N.A. 0.35 |
Phase Contrast | Phase Contrast Slider 25x |
Filter | Blue, Green & Gray |
Light Source | Transmiting light, Kohler Illumination System:
12V/20W Halogen |
Power Supply | 85-265V, 50/60Hz |
Optional Accessories | Item No. |
Eyepiece | WF16x/13mm | A51.2602-1613A |
10x Reticle Eyepiece (0.1mm) | A51.2605-10 |
Long Working Distance Objective | Plan Objective LPL2.5x/0.07, WD=29.7mm | A52.2608-2.5 |
Plan Objective LPL4x/0.10, WD=17.5mm | A52.2608-4 |
Plan Phase Contrast Objective
LPL Ph+ 10x/0.25 W.D.=7.9 mm | A5C.2630-10 |
Plan Phase Contrast Objective
LPL Ph+ 40X/0.25 W.D.=3.0 mm | A5C.2630-40 |
Phase Contrast | Phase Contrast Slider 10x | A5C.2611-10 |
Phase Contrast Slider 40x | A5C.2611-40 |
Culture Dish Holder | 54mm | A54.2606-54 |
Stage | Attached Mechanical Stage for 96 holes Plate | A54.2601 |
Adapter | C-Mount Adapter 0.6x (Focus Adjustable) | A55.2601-B06 |
C-Mount Adapter 1x | A55.2601-B1 |
Digital SLR Camera Adapte | For Nikon | A55.2622-N |
For Sony | A55.2622-S |
For Canon | A55.2622-C |
Light Source | Upgrade to 6V30W Halogen | A56.2650-30W |
Other | Micrometer 0.1mm | A58.2601-M |
