A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

Name: A231503 Zoom Stereo Microscope 0745x Mobile Phone Repair Can Up To 35x180x
Brand: CNOEC, OPTO-EDU
Price: 1 USD

China A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x wholesale

Brand Name : CNOEC, OPTO-EDU

Model Number : A23.1503

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Head : HD+USB Digital Camera 38.0M Pixels

Eyepiece : WF10x/20mm, Both With Eye-cup

Zoom Lens : 0.7~4.5x

Zoom Ratio : 1:6.5

Magnification : 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens

W.D. : Working Distance100mm, With Standard 1x Lens

F.O.V : Field Of View 1~95.2mm

Stand : Large Pole Stand, Size 200*255*8mm

Light Source : Upper 56 LEDs Right Light Brightness Adjustable

Contact Now

Head: Trinocular Head, Both Eye Tube Diopter Adjustable
Light Split Switch E100:P0/E0:P100
With Eyepiece Adapter + 1.0x C-Mount
Eyepiece: WF10x/20mm, Both With Eye-cup
Zoom Lens: 0.7~4.5x
Zoom Ratio: 1:6.5
Magnification: 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D.: Working Distance100mm, With Standard 1.0x Lens
F.O.V: Field Of View 1~95.2mm
Stand: Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

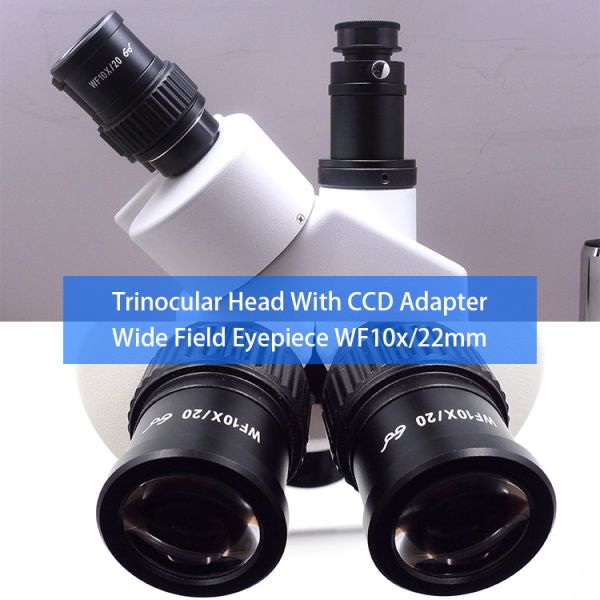

Trinocular Head, Both Eye Tube Diopter Adjustable

Light Split Switch E100:P0/E0:P100

With Eyepiece Adapter + 1.0x C-Mount
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

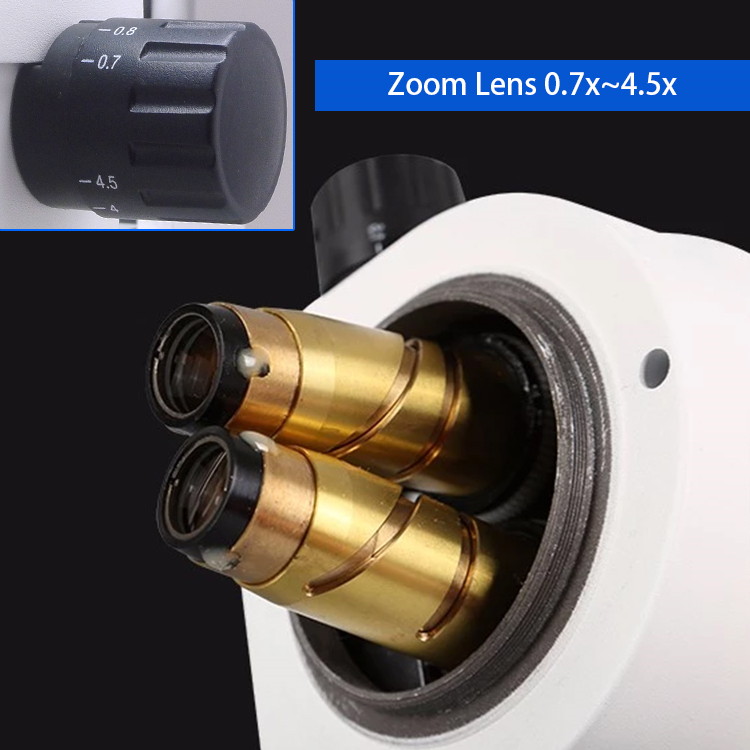

Zoom Lens: 0.7~4.5x
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

Focusing Range 50mm, Distance To Center 155mm
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

Total Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

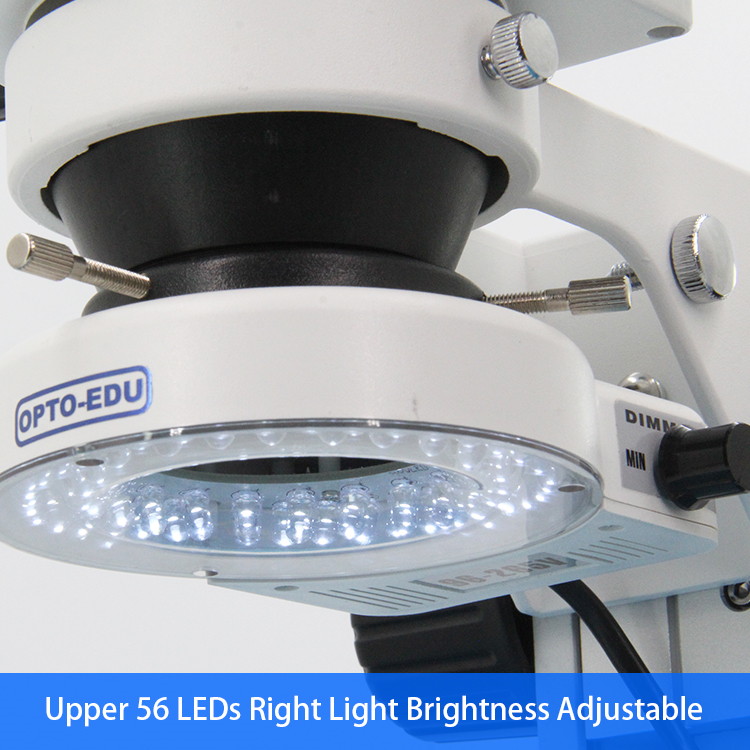

Upper 56 LEDs Right Light Brightness Adjustable
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

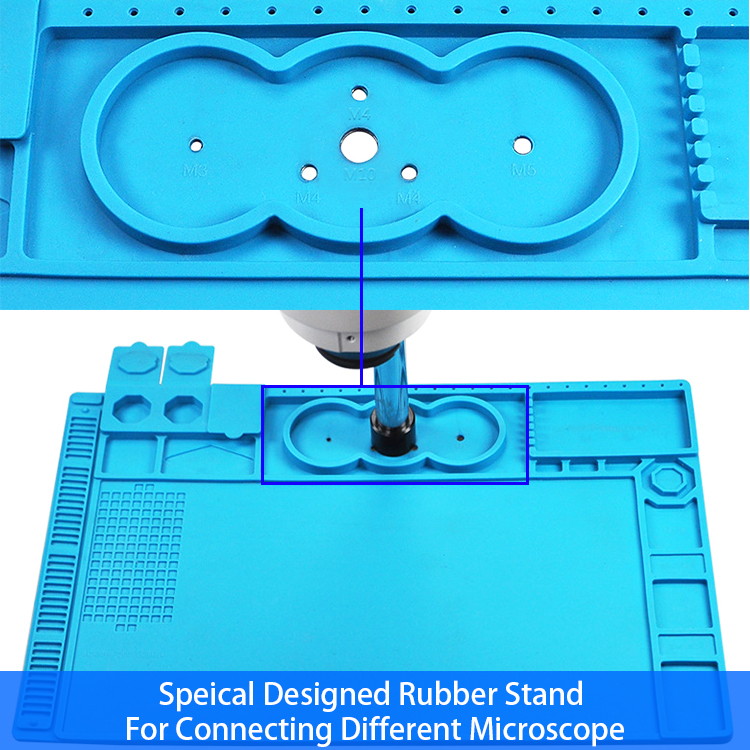

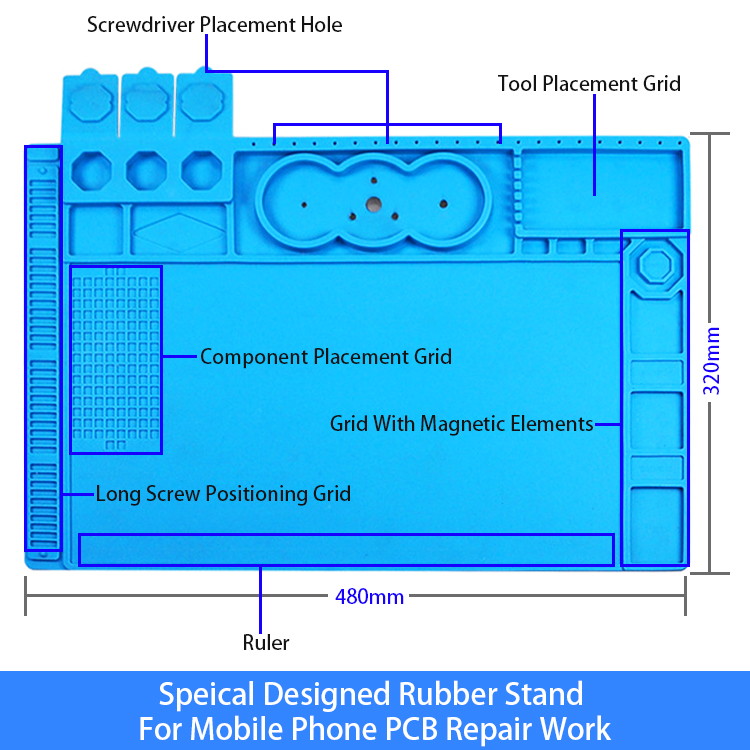

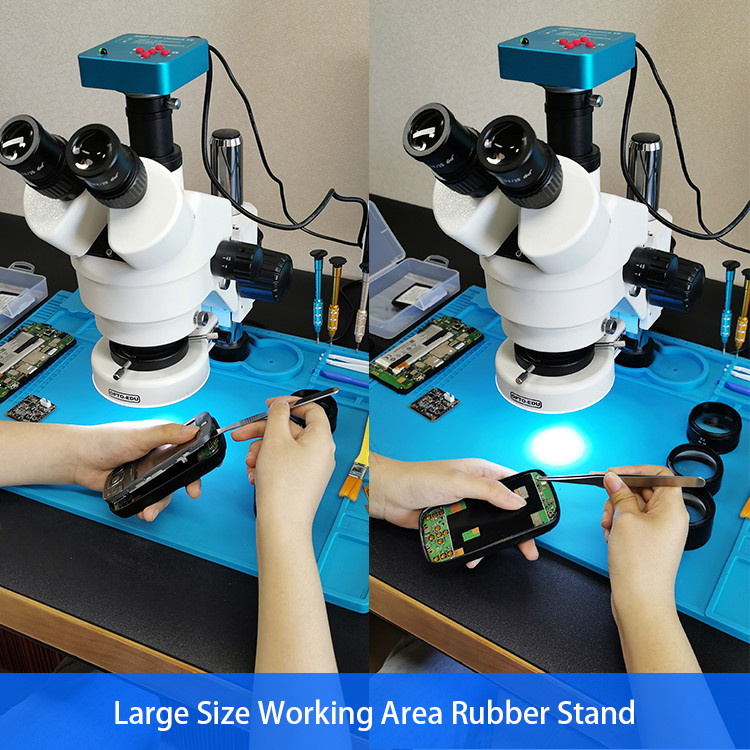

Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

A23.1503 DIY Phone PCB Repair Microscope
Head	Trinocular Head, Both Eye Tube Diopter Adjustable Light Split Switch E100:P0/E0:P100 With Eyepiece Adapter + 1.0x C-Mount
Eyepiece	WF10x/20mm, Both With Eye-cup
Zoom Lens	0.7~4.5x
Zoom Ratio	1:6.5
Magnification	7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D.	Working Distance100mm, With Standard 1.0x Lens
F.O.V	Field Of View 1~95.2mm
Stand	Large Pole Stand, Size 480x320mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
Optional Accessories		Cata.No.
Eyepiece	WF15x/15mm, High-eyepoint	A51.1520-15
Eyepiece	WF20x/10mm, High-eyepoint	A51.1520-20
Auxiliary Lens	0.5x,W.D. 177mm	A52.1520-05
	0.75x,W.D. 120mm	A52.1520-75
	2.0x,W.D. 30mm	A52.1520-20
Light Source	Upper 56 LEDs Right Light Brightness Adjustable	A56.2103-A
Digital Camera	HDMI+USB+TF Digital Camera, 38.0M, USB Measure	A59.4231
	7" LCD Digital Camera, AV Output	A59.5107
	9" LCD Digital Camera, AV Output	A59.5109
CCD Adapter	Eyepiece Adapter + 0.5x C-Mount	A55.1520-05

A23.1503 Zoom Stereo Microscope 0.7-4.5x Mobile Phone Repair Can Up To 3.5x-180x

A23.1503 Zoom Stereo Microscope Optical Data Sheet
Objective	Standard 1.0x		Auxiliary 0.5x		Auxiliary 0.75x		Auxiliary 2.0x
W,D.	100mm		177mm		120mm		30mm
Eyepiece	Mag	View Field	Mag	View Field	Mag	View Field	Mag	View Field
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	5.25x	43.8mm	14X	14.3mm
	45.0X	4.4mm	22.5X	8.9mm	45x	6.5mm	90X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	7.87x	31.8mm	21X	10.7mm
	67.5X	3.3mm	33.75X	6.7mm	50.6x	4.7mm	135X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	10.5x	23.9mm	28X	7.1mm
	90.0X	2.2mm	45.0X	4.4mm	67.5x	3.6mm	180X	1.1mm
