OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera

Brand Name : CNOEC, OPTO-EDU

Model Number : A59.4910

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Resolution : 5.0M

Maximum Resolution : 2592 x 1944 (5,038,848 Pixels)

Sensor : 1/2.5"

Pixel Size : 2.2μm x 2.2μm

Software Interface : Direct Show

USB Port : USB2.0 High Speed

Contact Now

ccd camera for microscope

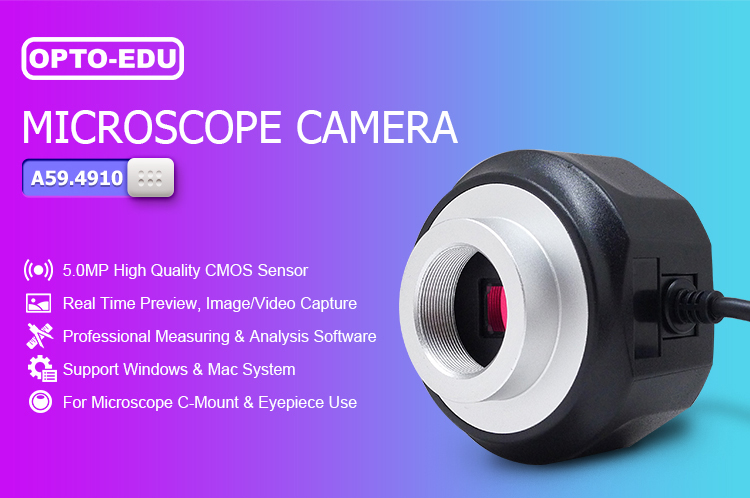

OPTO-EDU A59.4910 5mp Digital Eyepiece Camera For Microscope With Electronic Usb

--A closed structure with color filter built-in, preventing dust from CMOS sensor.

--Designed with commonly used tripod mount 1/4-20A for widely use.

--Reliable electrionic double plates design to resolve over heat problem after long working time.

--5V DC power supply from USB port no need additional power adatper.

--3 Years Quality Warranty!

Product Parameter

A59.4910 Hardware Configuration
Image Sensor Color
Expose Rolling Shutter
Maximum Resolution 2592x1944(5,038,848 Pixels)
Sensor Optical Format 1/2.5" (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm)
Pixel Size 2.2μm x 2.2μm(BSI)
Dynamic Range 74.3 dB Linear, More Than 96 dB (Interleaved)
SNRmax 40dB
Spectral Charatristics 380-650nm
Exposure Capability 3.9ms-320ms, Automatic And Manual
White Balance Automatic And Manual
Preview Modes 30FPS @2592X1944,
30FPS @1920X1080
30FPS @800X600, 640X480
Record Format Snapshot
Picture Format: JPG, BMP, PNG, TIFF, PDF
Resolution: 2592x1944, 1920x1080, 800x600, 640x480
Record
Video Format: MJPG Format AVI File
Resolution: 1920x1080, 800x600, 640x480
Softwware Environment
Windows System Demand Microsoft®Windows® XP/7/8/8.1/10 (32&64 Bit)
CPU: Equal Or More Than The Second Generation Intel Core 2.8GHz
Memory: 2G Or More
USB Port: USB 2.0 High Speed Port Or Compatible Port
Displayer: Suggest 17 Inches Or Larger
Operating Environment
Operating Temperature 0℃-40℃
Storage Temperature -20℃-60℃
Operating Humidity 30-80%RH
Storage Humidity 10-60%RH
Power Supply Direcct-Current 5V, Supply By USB Port
OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera

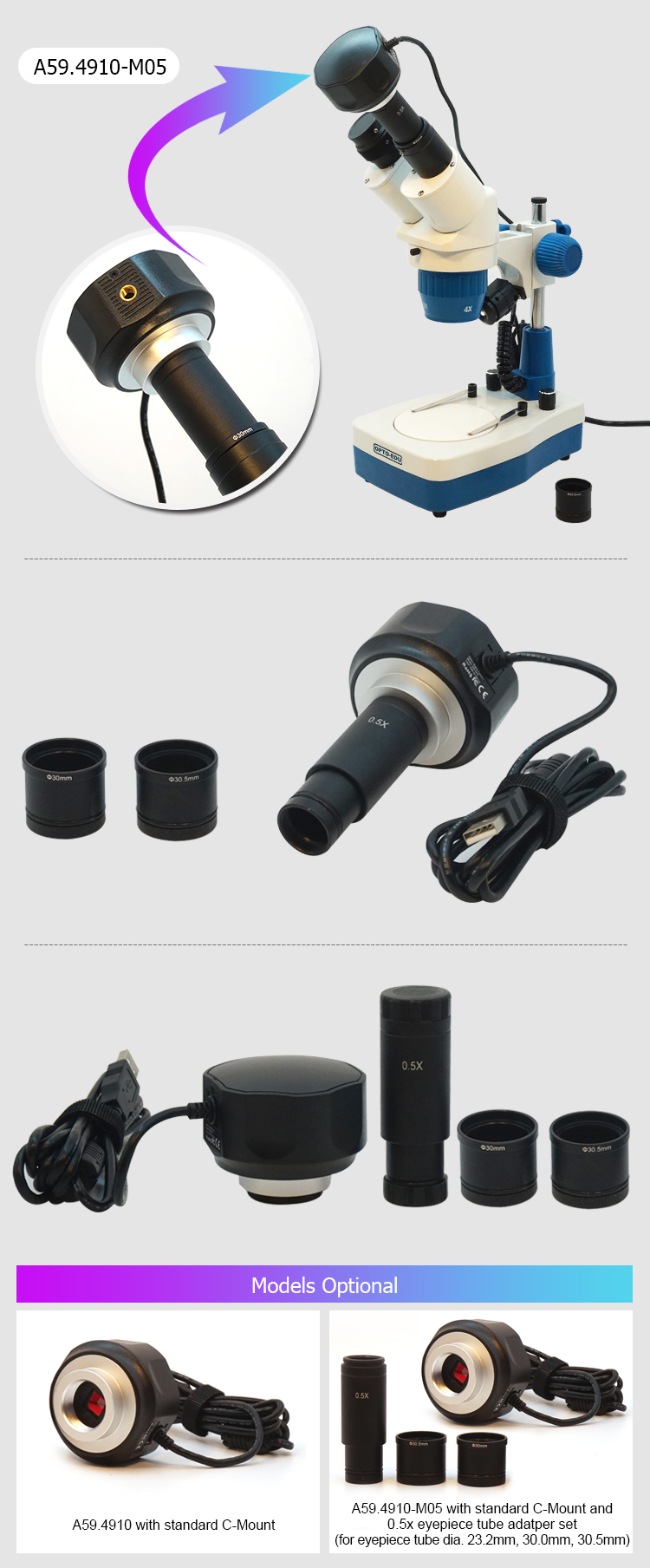

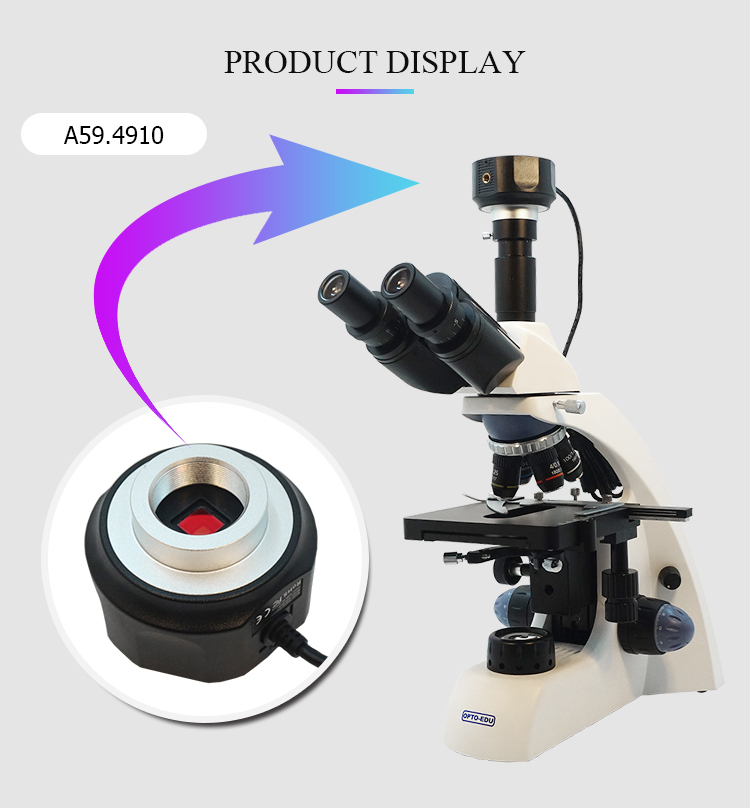

Product Display

OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope CameraOPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope CameraOPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera

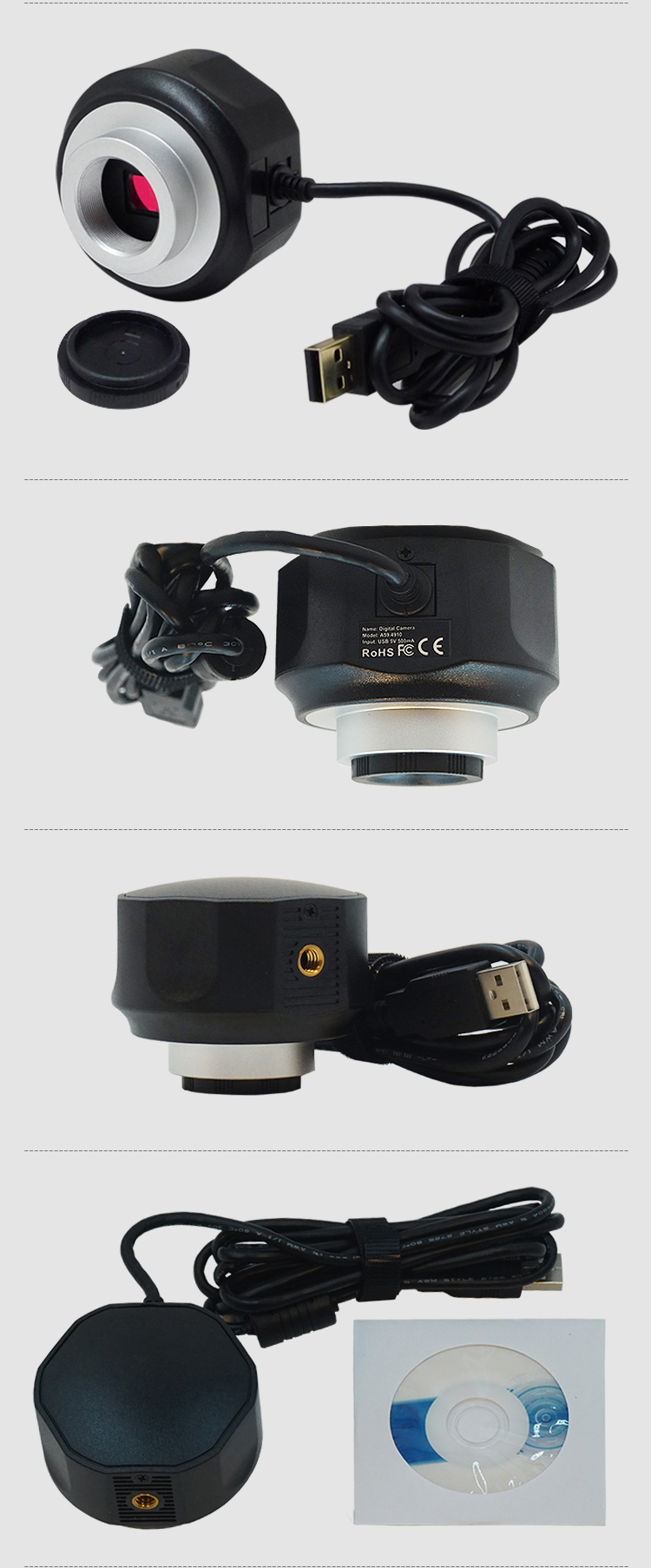

Product Feature

OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera

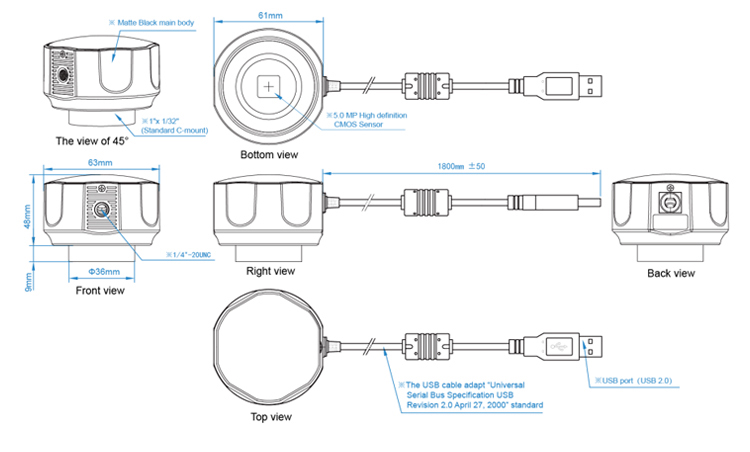

Drawing Display

OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera

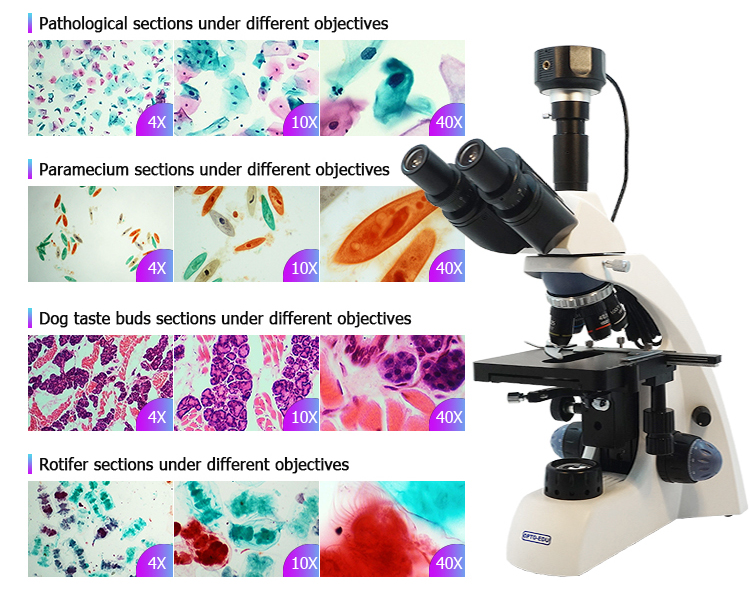

Application & Cases

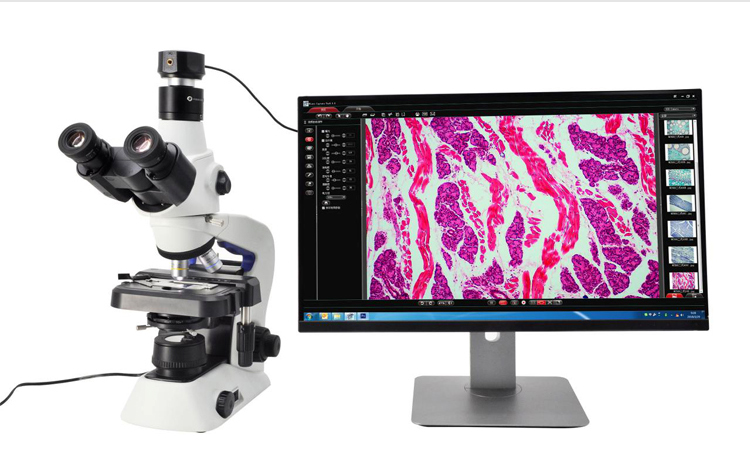

A59.4910 Microscope Camera can be connected to any biological microscopes, stereo microscopes, metallographic microscopes, etc. It has advantages of high frame rate, very nice color performance, clear image, convenient storage, widely used in industrial inspection, teaching research, clinical test, material analysis, machine vision, etc.

OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera

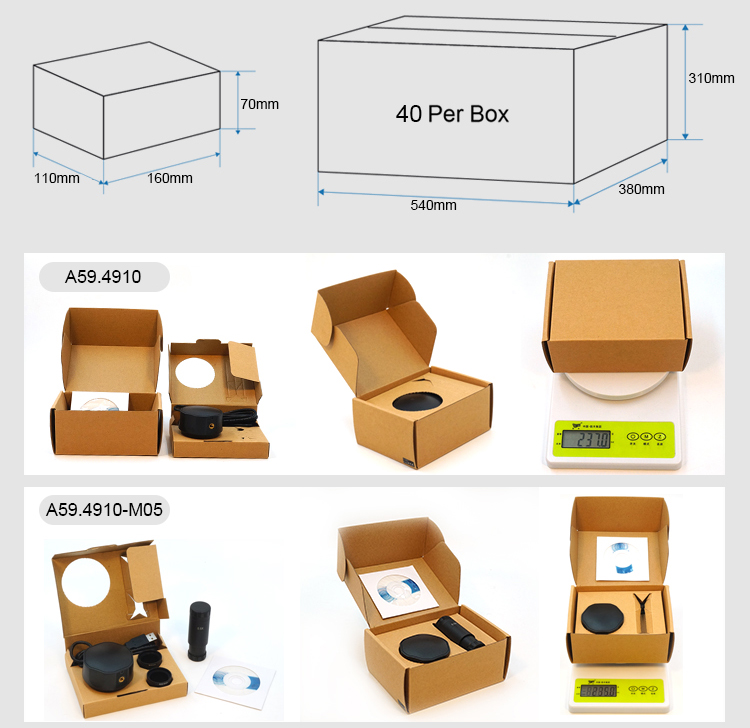

Packing & Delivery

Packing : Compact Design Box and Strong Master Carton

Shipping Time : 1-5 Days From Stock

G.W: A59.4910 0.24Kgs/Unit, 11.5Kgs/Carton

A59.4910-M05 0.33Kgs/Unit, 16.0Kgs/Carton

OPTO-EDU A59.4910 5.0M USB2.0 Hd Microscope Camera
