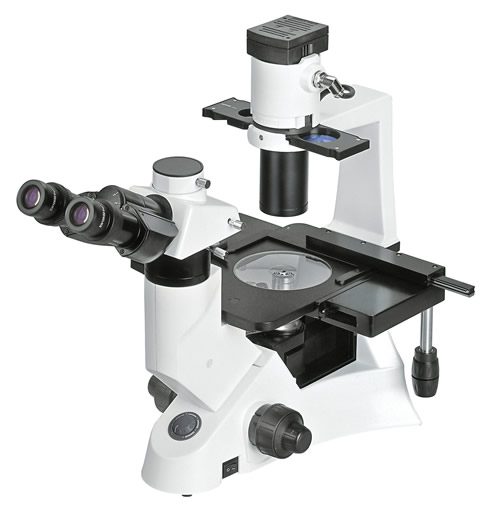

A14.1021 400x Trinocular Inverted Biological Microscope Infinity Optical System

Name: A141021 400x Trinocular Inverted Biological Microscope Infinity Optical System
Brand: CNOEC, OPTO-EDU
Price: 1 USD

China A14.1021 400x Trinocular Inverted Biological Microscope Infinity Optical System wholesale

Brand Name : CNOEC, OPTO-EDU

Model Number : A14.1021

Certification : CE,

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Optical System : Infinity Optical System

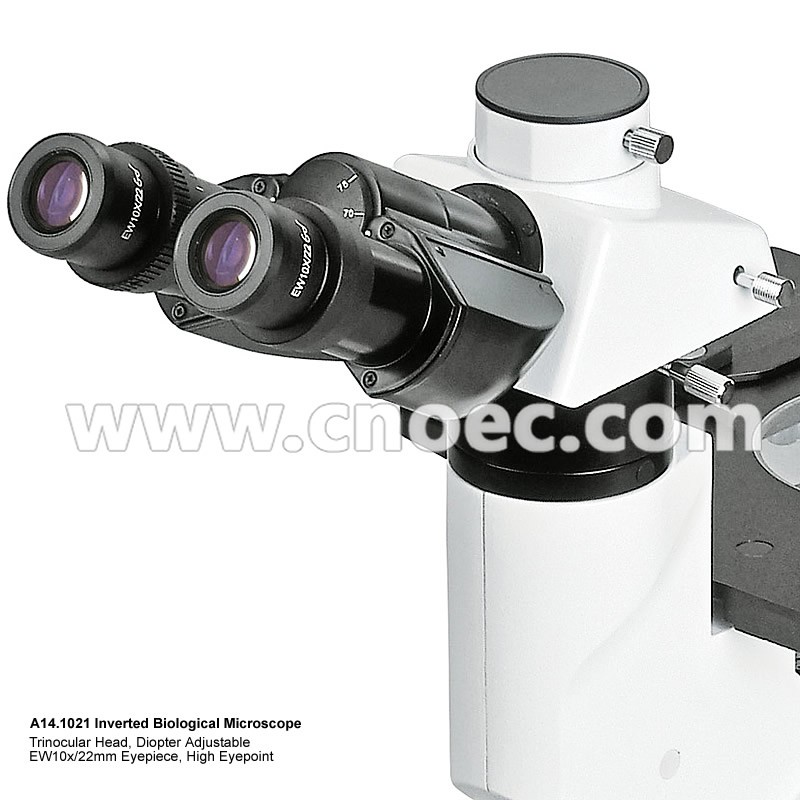

Head : Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable

Eyepiece : Extra Wide Field Eyepiece EW10x/22mm, High Eyepoint

Nosepiece : Quintuple Nosepiece

Objective : Infinity Plan LWD Achromatic Objective & Infinity Plan Phase Contrast Achromatic Objective

Focusing : Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation

Working Stage : --Plain Stage 160*250mm --Glass Insert Plate --Auxiliary Stage 70*180mm

Condenser : ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser

Phase Contrast : --Centering Telescope, Tube Dia.30mm --Phase Contrast Slide, 2 Holes For 10x-20x Objective

Filter : Green, Blue, Ground Glass, Dia.45mm

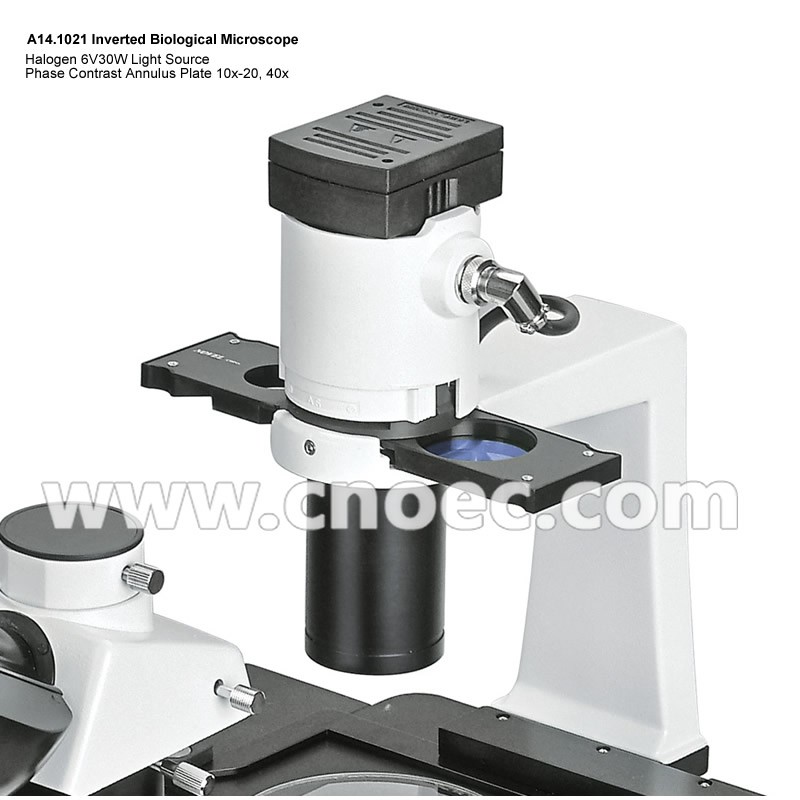

Illumination : External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable

Contact Now

OPTO-EDU A14.1021 400x Trinocular Inverted Biological Microscope

Trinocular, EW10x, Quintuple, Infinity Plan LWD 4x40x, Infinity Plan Phase Contrast 10x20x, ELWD Condenser NA0.3, Fixed Phase Annular, LED, With Eyepiece Adatper Set

A14.1021 Inverted Biological Microscope
Viewing head	Trinocular head inclined at 30°,interpupillary48-75mm
Eyepiece	High-point ,extra wide field eyepiece EW10x/20mm
Objective	Infinity Plan LWD Objective	4X/0.1,WD18mm
		40X/0.6,WD2.6mm(cover glass 1.2mm )
	Infinity Plan Phase Contrast Objective	PH10X/0.25,WD 10 mm
		PH20X/0.4,WD 5.1mm
Nosepiece	Quintuple Nosepiec
Condenser	ELWD Conderser NA0.3, LWD 72mm; (Without condersor LWD 150mm)
Phase Annulus Plate	10x-20 phase annulus plate
Stage	Plain stage 160×250mm mm
	Glass insert
	Auxiliary stage 70x180mm
Focusing	Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotatio
Illumination	Halogen Lamp 6V30W, Brightness Adjustable
Filter	Blue, green and ground glass, Φ45mm

A14.1021 400x Trinocular Inverted Biological Microscope Infinity Optical System

OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.

A14.1021 400x Trinocular Inverted Biological Microscope Infinity Optical System
